Choosing Water Outlet Connectors A Step-by-Step Guide for 2026

Selecting the correct water outlet connector prevents leaks and ensures durability. Many people make common mistakes during this process. Critical factors ensure a leak-free connection. A reliable water stop connector Simple Single Outlet connector Single is vital for any system. The right water stop connector choice prevents future problems. This guide will empower readers. They will make informed connector choices. Understanding various options, like Metal Hose Connectors, a Double Male Connector, or a Hose End Connector, is key. Even complex systems, such as a 4 Way Water Manifold, require careful selection.

Key Takeaways

• Choose the right water connector to prevent leaks and ensure your water system works well.
• Match the connector material to your pipe type, water pressure, and temperature for best results.
• Measure your pipe size and thread type carefully to get a perfect fit.
• Consider how easy the connector is to install and maintain for future needs.
• Always test for leaks after installing a new connector to keep your system safe.

Understanding Water Outlet Connectors and Their Importance

What Defines a Water Outlet Connector?

A water outlet connector serves as a vital link in any plumbing or watering system. It connects pipes, hoses, or fixtures to a water source. These components ensure a sealed and efficient transfer of water. Several characteristics define a water outlet connector.

• Material: Connectors come in plastic, brass, aluminum, or stainless steel. Each material offers different durability and performance.
• Pressure Rating: The connector must handle specific water pressure, measured in PSI. This prevents leaks or bursts.
• Type of Water Use: Connectors are designed for various purposes. Examples include quick-connect for easy tool attachment, Y-connectors for multiple hoses, or high-pressure applications like power washers.
• Ease of Use: Features like locking mechanisms or quick-connect designs affect how easily users attach and detach the connector.
• Additional Features: Some connectors include functionalities. These might be automatic water shut-off or adjustable flow control.

Why the Right Connector Choice is Crucial for Performance

Choosing the correct water outlet connector significantly impacts system performance. A well-matched connector ensures optimal water flow and pressure. It prevents common issues like leaks, which can lead to water waste and property damage. The right connector also guarantees the longevity of the entire system. Using an unsuitable connector can cause frequent breakdowns. It may also require costly repairs. For instance, a connector not rated for high pressure will fail under such conditions. Similarly, a connector made from an incompatible material might corrode. This compromises the system's integrity. Therefore, careful selection is essential for reliable and efficient operation.

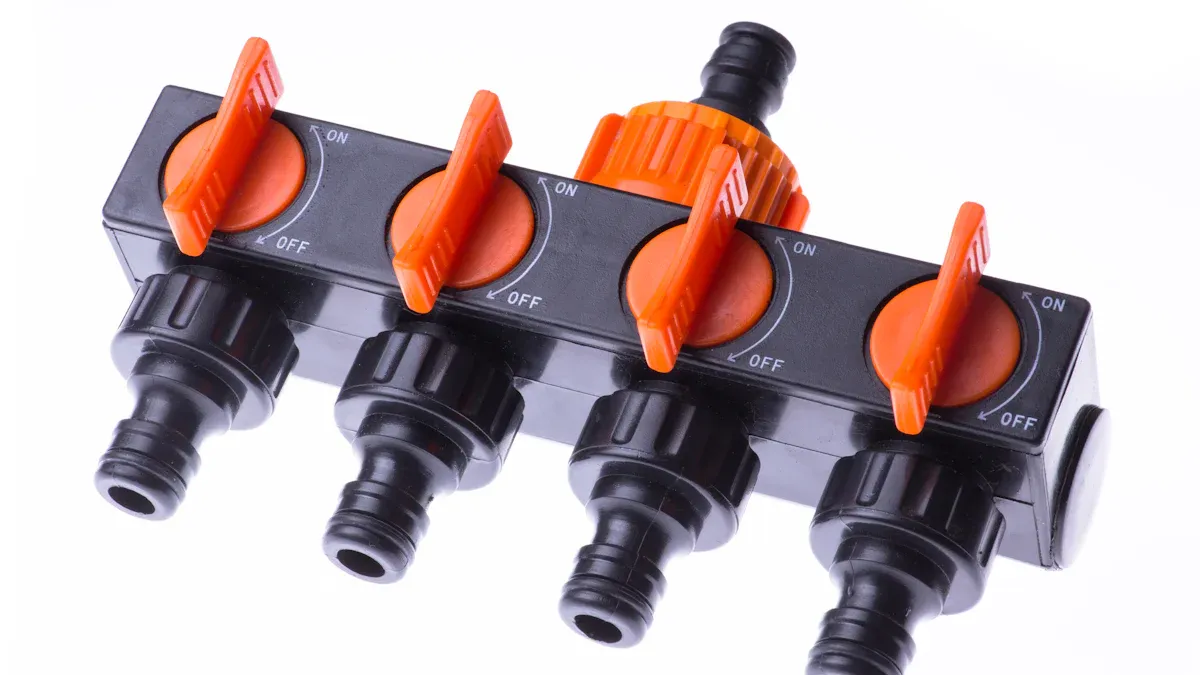

Exploring Common Water Outlet Connector Types

Different water outlet connector types serve specific purposes. Each type offers unique advantages for various applications. Understanding these differences helps in making the best choice for a system.

Threaded Connectors for Secure Connections

Threaded connectors are a fundamental type in plumbing. They create a seal by screwing together male and female threads. These connectors are common in residential plumbing due to their simplicity and cost-effectiveness. They also find use in small-scale industrial applications where high pressure is not a primary concern. Agricultural systems, such as irrigation setups, often utilize threaded connectors because of their ease of installation and maintenance. However, threaded connectors have limitations. They can be prone to leaks if installers do not properly seal them, especially in high-pressure environments. They also have strength limitations; they are not as robust as flanged connections and work best for low-pressure applications.

Push-to-Connect Fittings for Easy Installation

Push-to-connect fittings offer a quick and tool-free installation method. Installers use a sharp pipe or tubing cutter to ensure a clean, burr-free cut. This step prevents O-ring damage and ensures a tight seal. Pipes do not need to be dry for installation; users simply shut off the water and drain as much as possible. They fully insert the pipe into the fitting to the manufacturer's specified depth. A depth gauge or marking the pipe helps avoid partial insertions and leaks. Insert the pipe slowly but firmly, twisting it as you push to the proper depth. This prevents O-ring damage. For 'twist and lock' fittings, hand-tighten the nuts to secure the fitting. 'Standard' push-fits simply require pipe insertion. When working with PEX, ensure an insert is used to prevent tubing collapse. To remove pipe, press down on the fitting's collet or 'release collar'. These fittings are suitable for emergency repairs or installations with tight schedules. They are ideal for situations where quick and easy installation is paramount.

Compression Fittings for Tight Seals

Compression Fittings create a tight seal by compressing a ferrule or ring onto the pipe. These fittings are relatively simple to install compared to methods like soldering. They offer reusability; users can disassemble and reassemble them multiple times without significant loss of function. Compression fittings are versatile. They are compatible with various pipe materials such as copper, PVC, and PEX. They also accommodate different pipe sizes. When installed correctly, they form a durable and tight seal, effectively preventing leaks. Installation does not necessitate welding, which simplifies and speeds up the process. They offer a secure and long-lasting connection capable of withstanding high pressure and temperature fluctuations. However, applying excessive force during installation can damage the pipe or the fitting itself. Repeated disassembly can also degrade the seal's effectiveness over time. Compression fittings, especially those made from high-end materials like brass, can be more expensive than other connector types.

Barbed Fittings for Flexible Hoses

Barbed fittings create a secure connection with flexible hoses. They feature a series of ridges, or barbs, that grip the inside of the hose. Installers often use these fittings in various applications. They connect hoses or tubing in residential and commercial plumbing systems. Industries use them for pneumatic and hydraulic systems, transferring air, gas, or fluids. Automotive applications include connecting hoses in coolant, fuel, or brake systems. Medical equipment utilizes them for fluid transfer in various devices. The beverage industry connects hoses in dispensing systems for liquids. Aquariums use them for filtration, water changes, or aeration systems. Gardeners and irrigators connect hoses or tubing for water supply, including drip irrigation. Home brewers also use them for liquid transfer in brewing setups.

Hose barb fittings come in various materials. These include plastic, stainless steel, nylon, and brass. Each material offers different levels of durability and resistance. The hose's material significantly affects barb sizing. Flexible materials like rubber or soft plastics can stretch to accommodate a slightly larger barb. Harder or less flexible materials require a more precise match between the hose's inner diameter and the barb's outer diameter. Barbed fittings are generally unsuitable for high-pressure applications. Pressure could overcome the barb's grip on the tube. However, they can be used for pneumatics if they withstand the system's pressure. Tubing commonly used with barbed fittings includes flexible elastomeric or polymer types. Examples are polyurethane, polyethylene, nylon, Teflon®, PEEK®, PVC, Silicone, and Viton®. Barbed fittings work best with flexible tubing that has excellent memory characteristics, like polyurethane. Clamps are generally recommended for system pressures approaching 80 to 100+ psi. This adds reliability, handles pressure pulses and heat, and prevents the tubing from lifting off the barb. Barbed fittings are typically limited to relatively low pressures, usually below 150 or 125 psi. This limitation comes from the soft and flexible tubing they are designed for.

Quick-Connect Couplings for Convenience

Quick-connect couplings offer unparalleled convenience. Users can rapidly attach and detach hoses or tools without needing additional tools. These couplings typically feature a male and female component. A simple push or pull mechanism locks them together. Gardeners frequently use quick-connects for Hose Nozzles, sprinklers, and other watering accessories. They save time and effort during setup and breakdown. Air tool users also benefit from quick-connects on air compressors and pneumatic tools. This allows for swift changes between different implements. Many modern pressure washers also incorporate quick-connect fittings for their hoses and spray wands. This enhances user experience and efficiency.

Specialty Connectors for Unique Applications

Specialty connectors address specific plumbing challenges. They provide tailored solutions for unique installation needs.

• Tee Stops allow tapping into existing Copper, CPVC, or PEX lines. They provide 1/4 turn shut-off for additional fixtures like icemakers, humidifiers, and dishwashers.
• Stop Valve Connectors convert 3/8" or 1/4" compression outlets to SharkBite® outlets. This allows for quick pipe or fitting disassembly.
• Stop Valve Tee Adapters convert a single 3/8" compression outlet into two SharkBite® outlets. This supplies multiple fixtures.
• Dual Tee Stop Valve Adapters attach directly to male tube ends when only one wall stub-out is present. They provide two stop valves.
• Faucet Supply Kits offer speed and convenience for faucet installations. They allow custom lengths of supply tubing.
• Stainless Steel Braided Water Heater Hoses with SharkBite® Ball Valves offer flexibility and connectivity for water heater installations. They include a ball valve and connect various pipe types without additional fittings.
• Water Softener Hoses facilitate easier water softener installation. They help deter water hammer by absorbing sudden impacts.
• Flexible Hoses with SharkBite® Couplings are ideal for offset piping connections or situations requiring flexibility. They feature SharkBite® fittings on both ends.
• Angle Stops are 1/4 turn angle stops that adapt to Copper, CPVC, or PEX. They provide shut-off valves for supply lines to faucets, toilets, and other fixtures.

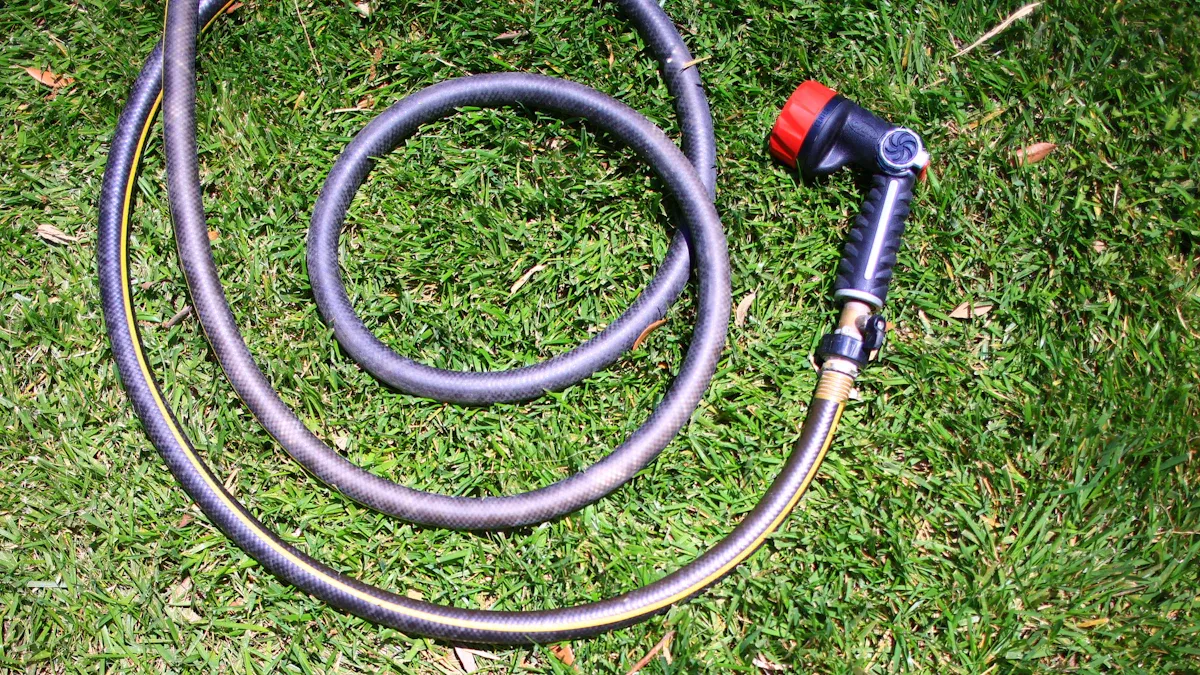

The Versatility of a Simple Single Outlet Connector

A simple single outlet connector serves as a fundamental component in many water systems. This connector provides a direct, uncomplicated link from a water source to a single device. Its design prioritizes efficiency and ease of use. Users often select a water stop connector Simple Single Outlet connector Single for basic applications. For instance, it connects a garden hose to an outdoor tap. This setup allows for watering plants or washing a car without complex configurations.

The versatility of this connector lies in its straightforward functionality. It eliminates the need for multiple connections or diversions. This simplicity reduces potential leak points, enhancing system reliability. Homeowners frequently use a water stop connector Simple Single Outlet connector Single for their primary watering needs. It ensures a secure and steady flow of water to a single hose or sprinkler. This dependable connection is crucial for everyday tasks.

Furthermore, this type of connector is essential for temporary setups. Consider a situation requiring a single water feed for a specific task. A simple single outlet connector offers a quick and effective solution. Its robust construction often allows for repeated use across various scenarios. This makes it a cost-effective choice for many households and small businesses. The water stop connector Simple Single Outlet connector Single remains a staple for its dependable performance and ease of integration into any basic water system. It proves that sometimes the simplest solution is the most effective. This connector avoids over-complicating a system. It provides a dedicated pathway for water. Its durability ensures long-term service, making it an indispensable part of any basic watering setup.

Here are some common applications:

• Connecting a single garden hose for general outdoor use.
• Attaching a pressure washer to a water supply.
• Providing water to a single drip irrigation line.
• Supplying water to a temporary outdoor faucet.

This connector's design focuses on reliability and ease of installation. It requires minimal tools, making it accessible for all users. Its robust build withstands daily wear and tear, ensuring a consistent water supply.

Essential Materials for Water Outlet Connectors

Brass Connectors for Durability

Brass connectors are a popular choice for their durability and robust nature. They find extensive use in residential plumbing for hot and cold water distribution. Installers also use them for drain and vent piping, fixture connections, and water heater installations. Common sizes for residential use typically range from 1/2″ to 2″, with 3/4″ and 1″ being the most frequent. Brass is highly valued for its longevity, corrosion resistance, and easy installation. It possesses strength and withstands variations in pressure. This makes it suitable for fittings in applications involving chemicals and gases. For water heaters, brass connects tanks, T&P relief valves, recirculation systems, and expansion tanks. DZR brass is essential for continuous use above 60°C. Red brass (C23000), with 15% zinc, offers high corrosion resistance. Both red brass and naval brass are utilized in piping systems due to their corrosion resistance and durability.

Stainless Steel Connectors for Corrosion Resistance

Stainless steel connectors offer superior corrosion resistance, making them ideal for demanding environments. Grade 316 stainless steel provides exceptional resistance to chlorides and salt environments. This surpasses brass or even 304 stainless steel. Stainless steel also exhibits better resistance to aggressive chemicals like chlorides and sulfates. It maintains integrity in marine and coastal environments, which pose high risks for other metals. Stainless steel has a significantly higher maximum temperature tolerance, withstanding up to 1200°F. This makes it suitable for high-temperature applications. In galvanic corrosion scenarios, stainless steel acts as the cathode, meaning it is more noble than brass. This makes it less prone to corrosion itself. However, it can accelerate the corrosion of a brass component if directly connected.

Plastic and PVC Connectors for Cost-Effectiveness

Plastic and PVC connectors offer a cost-effective solution for many water systems. PVC fittings are more economical compared to metal or specialized polymer alternatives. They exhibit good resistance to most acids, bases, salts, and alcohols. This makes them suitable for various chemical applications. However, users should avoid certain chemicals. Aromatics, such as benzene and toluene, can cause potential issues. Ketones, like acetone and MEK, can lead to stress cracking. Chlorinated solvents, including TCE and PCE, may cause swelling and eventual failure. Therefore, careful consideration of chemical compatibility is crucial when selecting plastic or PVC connectors.

Copper Connectors for Traditional Plumbing

Copper connectors hold a long-standing tradition in plumbing systems. Plumbers value copper for its excellent durability and resistance to corrosion. It withstands high temperatures and pressures effectively. This makes it a reliable choice for both hot and cold water lines. Installers typically join copper pipes and connectors using soldering or brazing. This creates strong, leak-proof bonds. Copper's smooth interior surface also resists bacterial growth. This contributes to cleaner water delivery. Many older homes still feature extensive copper plumbing. Its longevity often means these systems remain functional for decades. While installation requires specific tools and skills, the resulting system offers exceptional performance.

PEX Connectors for Modern Systems

PEX (cross-linked polyethylene) connectors represent a modern alternative in plumbing. They offer significant advantages in flexibility and ease of installation. PEX tubing bends around corners, reducing the need for multiple fittings. This saves time and labor during installation. PEX connectors resist corrosion, scale buildup, and chlorine. They also tolerate freezing temperatures better than rigid pipes. Installers typically use crimp rings or expansion fittings to secure PEX connectors. These methods create reliable, leak-free connections without soldering. PEX systems are cost-effective and efficient. They have become a popular choice for new construction and remodeling projects.

Metal Hose Connectors vs. Plastic Hose Connectors

Choosing between metal and plastic Hose Connectors depends on specific needs. Metal hose connectors, often made from brass or stainless steel, offer superior durability and strength. They withstand higher water pressures and resist crushing or kinking. Gardeners often prefer metal connectors for heavy-duty use and longevity. They provide a secure, long-lasting connection for frequently used hoses.

Plastic hose connectors, conversely, are lightweight and more affordable. They resist rust and corrosion, making them suitable for various outdoor conditions. Many plastic connectors feature quick-connect designs for easy attachment and detachment. While generally less durable than metal, modern plastics offer improved resilience. They are ideal for lighter-duty tasks or situations where cost is a primary concern. For example, a simple single outlet connector made of plastic works well for occasional watering.

Key Factors for Selecting the Right Water Outlet Connector

Choosing the correct water outlet connector requires careful consideration of several critical factors. These elements directly influence the connector's performance, longevity, and overall system integrity. Users must evaluate each aspect to ensure a reliable and leak-free connection.

Identifying Your Pipe Type and Size for Compatibility

Selecting a water outlet connector begins with accurately identifying the existing pipe type and its dimensions. Different piping materials demand specific connector types for proper sealing and compatibility. Common pipe materials include copper, PEX, PVC, and galvanized steel. Each material possesses unique properties and requires distinct connection methods. For instance, installers often solder copper pipes, while PEX systems typically use crimp or expansion fittings. PVC pipes usually require solvent welding or threaded connections.

Accurate pipe sizing is equally crucial. Pipes are often measured by their nominal size, which does not always correspond directly to the actual outer diameter (OD) or inner diameter (ID). Users must measure both the OD and ID of the pipe to ensure a precise fit. Threaded connections also require identifying the correct thread type, such as National Pipe Taper (NPT) or British Standard Pipe (BSP), to prevent cross-threading and leaks. A mismatch in pipe type or size inevitably leads to connection failures, leaks, and potential system damage.

Assessing Water Pressure and Temperature Requirements

The operational water pressure and temperature are paramount considerations for any water outlet connector. Every connector has specific pressure and temperature ratings, which users must match to the system's operating conditions. Exceeding these ratings can cause connector failure, leading to leaks, bursts, or even system shutdowns.

Industry standards provide clear guidelines for various components. For example, water manifold systems, adhering to IAPMO IGC 315-2016, typically require a minimum pressure rating of 690 kPa (100 psi) and a temperature rating of 82 ºC (180ºF). Similarly, gate, globe, angle, and check valves, following IAPMO IGC 312-2018a, often specify a minimum pressure rating of 860 kPa (125 psi) and a temperature rating of 23 ºC (73ºF).

Component	Standard	Minimum Pressure Rating	Temperature Rating
Water Manifold Systems	IAPMO IGC 315-2016	690 kPa (100 psi)	82 ºC (180ºF)
Gate, Globe, Angle, and Check Valves	IAPMO IGC 312-2018a	860 kPa (125 psi)	23 ºC (73ºF)

This table illustrates the importance of consulting specific product specifications and relevant industry standards. Users ensure the chosen connector can safely and effectively handle the system's maximum pressure and temperature fluctuations.

Considering the Application Environment and Exposure

The environment where the water outlet connector operates significantly influences material selection and design. Connectors used outdoors face different challenges than those installed indoors. Exposure to elements like sunlight, rain, extreme temperatures, and chemicals can accelerate material degradation.

Several environmental factors impact connector integrity:

• Ambient Temperature: High temperatures degrade insulation, reduce metal elasticity, accelerate oxidation, and deteriorate coatings. This necessitates material selection that can withstand the expected temperature range, typically -55~100℃, or higher for specialized applications.
• Humidity: High humidity (above 80% relative humidity) causes electrical breakdown, reduces insulation resistance, leads to physical deformation, decomposition, and corrosion. For outdoor water outlet connectors, this implies a need for sealed connectors to prevent water seepage and pollution.
• Sudden Temperature Changes: Rapid shifts in temperature cause insulating materials to crack or delaminate, impacting the connector's integrity.
• Atmospheric Pressure: At high altitudes or low atmospheric pressure, plastics emit gas, increasing corona, reducing voltage resistance, and potentially causing short circuits. While less directly applicable to typical outdoor water outlets, it highlights the need to consider pressure effects on material outgassing and electrical performance in specific environments.

For outdoor applications, users often choose materials like brass or stainless steel due to their superior resistance to corrosion and UV degradation. Plastic connectors, while cost-effective, may become brittle over time with prolonged sun exposure. Indoor environments, generally more stable, allow for a wider range of material choices, including PVC or PEX, depending on the specific application. Evaluating these environmental factors ensures the connector maintains its structural integrity and sealing capabilities throughout its service life.

Evaluating Durability and Longevity Needs

The durability and longevity of a water outlet connector are paramount. These factors directly influence the reliability and lifespan of an entire plumbing or watering system. A connector's material and design determine its ability to withstand continuous use, environmental stressors, and the passage of time. Choosing a connector with appropriate durability prevents premature failure, leaks, and costly repairs.

Different pipe materials and their corresponding connectors offer varying lifespans and durability ratings. For example, copper pipes typically last 50 to 70+ years and possess excellent durability. They are ideal for potable water lines due to their resistance to heat and leaks. However, acidic water can cause corrosion. Galvanized steel, often found in older homes, has a lifespan of 20 to 50 years with fair durability. It is prone to internal rusting. Brass pipes offer good durability, lasting 40 to 70 years, and resist corrosion. Older types might contain lead. Cast iron pipes are highly durable, lasting 75 to 100 years. Primarily used for drainage and sewer lines, they are robust but heavy. PVC pipes have a lifespan of 25 to 40 years with good durability. They work best for drain lines and vent systems but cannot handle hot water or UV exposure. CPVC pipes, with good durability, last 50 to 75 years. They suit hot and cold water supply lines due to better heat and chemical resistance than PVC, though they can become brittle. PEX pipes, also with good durability, last 40 to 50 years. They are flexible and freeze-resistant, making them good for whole-home water systems, but they degrade in sunlight. Lead pipes, while lasting 100+ years, have poor durability due to being a significant health hazard.

Consider the expected lifespan of the entire system. Match the connector's longevity to this expectation. For instance, M-type copper pipes, being thinner, can leak in as little as 20 years due to corrosion. Thicker L-type copper pipes generally last at least 50 years and can extend up to 100 years. PEX piping, due to its flexibility and durability, is expected to last at least 50 years. PVC and CPVC pipes, under typical conditions, can last up to 100 years. PVC is often used for drainage and is susceptible to damage from extreme heat. CPVC is heat-resistant and suitable for hot water lines. Cast iron, commonly used for drain lines, typically lasts around 75 to 100 years. Selecting a connector material that aligns with the pipe's expected service life ensures a cohesive and long-lasting system.

Pipe Material	Average Lifespan	Durability Rating
Copper	50–70+ years	Excellent
Galvanized Steel	20–50 years	Fair
Brass	40–70 years	Good
Cast Iron	75–100 years	Excellent
PVC	25–40 years	Good
CPVC	50–75 years	Good
PEX	40–50 years	Good
Lead	100+ years	Poor

Matching Connector to Fluid Type and Chemical Compatibility

The type of fluid flowing through a system dictates the necessary chemical compatibility of its connectors. Water outlet connectors must resist degradation from the specific fluid they transport. This consideration extends beyond just water. It includes various chemicals, additives, or even different water qualities (e.g., hard water, chlorinated water). An incompatible connector material can corrode, degrade, or leach harmful substances into the fluid. This compromises both the system's integrity and the fluid's purity.

For instance, certain plastics may not withstand exposure to strong acids or bases. These chemicals can cause the plastic to become brittle, crack, or dissolve over time. Similarly, some metals, like brass, can corrode when exposed to highly acidic or alkaline solutions. Stainless steel generally offers superior resistance to a broader range of chemicals, including chlorides, making it suitable for more aggressive environments.

Always consult manufacturer specifications for chemical compatibility charts. These charts detail which materials are safe for use with specific chemicals. Ignoring chemical compatibility can lead to catastrophic failures, environmental contamination, and health hazards. For example, a connector designed for potable water might fail rapidly if used with industrial solvents. This careful matching ensures the connector maintains its structural integrity and prevents unwanted reactions with the fluid.

Skill Level and Ease of Installation Considerations

The required skill level and ease of installation are practical considerations when selecting water outlet connectors. Some connectors require specialized tools and expertise, while others offer simple, DIY-friendly installation. Users must assess their own capabilities or the availability of professional help before making a choice.

Connector Type	Recommended Skill Level	Installation Tools/Requirements
Compression Fittings	User-friendly (DIYers)	No heat or soldering required
Soldered (Sweat) Connectors	Professional	Heating tools, solder
Push-Fit (Push-to-Connect) Fittings	DIYers	No tools required
Threaded Connectors	General	Teflon tape or thread sealant
Flare Fittings	Professional	Flaring tool
Barbed Fittings	General	Clamp or crimp ring

Push-fit (push-to-connect) fittings, for example, are highly user-friendly. They require no special tools, making them ideal for DIYers and quick repairs. Compression fittings are also user-friendly and do not require heat or soldering. They offer a straightforward installation process. Threaded connectors are general-purpose. They typically require only Teflon tape or thread sealant for a secure connection. Barbed fittings are also general-purpose. They usually need a clamp or crimp ring to secure flexible hoses.

Conversely, soldered (sweat) connectors demand a professional skill level. They require heating tools and solder to create a permanent, leak-proof bond. Flare fittings also fall into the professional category. They necessitate a flaring tool to create a tight seal. Choosing a connector type that matches the installer's skill level prevents installation errors, potential leaks, and frustration. Opting for simpler installation methods can save time and labor costs, especially for homeowners. However, complex systems or critical applications often benefit from the precision and reliability offered by professionally installed connectors.

Step-by-Step Selection Process for Your Water Outlet Connector

Choosing the correct water outlet connector involves a systematic approach. This process ensures compatibility, durability, and optimal performance for any water system. Following these steps helps users make informed decisions.

Determine Your Connection Point and Purpose

The first step involves identifying the specific location and function of the connector. Different parts of a plumbing system require distinct connector types. For instance, valves regulate, direct, or control the flow of liquids or gases. They fall into categories such as isolation valves, which temporarily disconnect parts of a system for maintenance. These valves are typically fully open or closed, like gate, plug, or ball valves. Throttling valves, such as globe, needle, butterfly, or diaphragm valves, control the amount or pressure of fluid. They withstand wear from continuous operation. Non-return or check valves allow fluid flow in one direction but prevent reverse flow. These are common in drainage or pressurized systems.

Other common connection points include elbows, which change the direction of a pipe. They are available in 45 and 90-degree angles and can be threaded or welded. Tees allow pipes to branch in three directions, with one inlet and two outlets. They commonly split or combine fluid flow. Reducers connect pipes of different diameters. Caps and plugs close the end of a pipe; caps fit over, while plugs fit inside. Couplings and unions connect two pipes. Couplings prevent leakage, while unions allow easy disconnections for maintenance. Adapters connect pipes of different types or sizes. They often transition between threaded and plain ends or different materials. Olets are branch fittings connecting smaller to larger pipes, typically in high-pressure systems. Nipples are short pieces of pipe with threads at both ends. They join two fittings or extend pipe runs.

The purpose also dictates the type of fitting. Threaded fittings utilize spiral grooves to securely attach two pieces. They are commonly used for metal pipes. They are easy to install and dismantle, suitable for high-pressure applications, and require sealant tape to prevent leaks. Soldered or sweat fittings join copper pipes by melting a filler metal with heat. This creates a watertight seal. These are strong, permanent connections often found in residential plumbing. They require a torch and solder wire for installation. Compression fittings connect pipes by compressing a nut and sleeve onto the pipe. This forms a tight seal without soldering or threading. They are easy to install and beneficial for pipes needing frequent disconnection, though less ideal for high pressure. Push-fit or push-to-connect fittings are user-friendly. They require no tools; pipes simply push in to lock with a watertight seal. They are ideal for quick repairs and DIY projects, primarily used with copper, CPVC, or PEX. Mechanical sleeve or slip fittings connect pipes using a sleeve that slips over the ends. They rely on compression or gaskets for a seal. They are valuable for accommodating pipe expansion or contraction due to temperature changes.

Measure Pipe Diameter and Thread Type Accurately

Accurate measurement of pipe diameter and thread type is crucial for a leak-free connection. The nominal size of a pipe thread, such as “1/2 inch BSP,” is a trade name. It is not a direct physical dimension. Historically, it relates to the inside diameter of the pipe. The actual outside diameter of the thread is always significantly larger than the nominal size. Therefore, a British standard pipe thread chart is absolutely vital to translate a measured outside diameter (OD) into the correct nominal size. For example, a measured OD of 20.95 mm corresponds to a 1/2 inch BSP thread. This would be meaningless without consulting the chart.

Users must differentiate between BSPP (parallel) and BSPT (tapered) threads for proper sealing. They use calipers to accurately measure the thread’s major diameter for initial identification. A thread pitch gauge is the definitive tool for confirming the threads per inch (TPI). Always verify measurements against a complete British standard pipe thread chart. BSPP seals with a gasket, while BSPT seals on the threads themselves. Confirm the 55-degree thread angle to distinguish BSP from 60-degree NPT threads. Improperly matched threads are a primary cause of leaks in fluid systems.

To measure accurately:

1. Zero digital calipers and ensure the jaws are clean.
2. Gently place caliper jaws over the threads of the male fitting, avoiding excessive force.
3. For BSPP (parallel) threads, measure anywhere along the length. Take multiple measurements for consistency.
4. For BSPT (tapered) threads, measure the diameter at the fourth or fifth full thread from the end of the fitting. This provides a representative diameter for comparison with standard charts.

Measuring the internal diameter of a female fitting is challenging. It requires an internal bore gauge or the internal jaws of a caliper. It is often more reliable to identify a male fitting that mates correctly with the female port. Then, infer the female port's identity. If direct measurement is necessary, measure the major internal diameter (at the crests of the thread) and compare it to a detailed chart. For a tapered female (Rc) port, the diameter increases deeper into the port. For a parallel female (G) port, the diameter remains constant.

Manufacturers often pre-apply thread sealant (dry, whitish, or reddish compound) to male tapered threads (like BSPT or NPT). This indicates these threads seal on themselves. Conversely, new male BSPP (parallel) fittings typically do not have sealant on their threads. Their sealing mechanism relies on a gasket or bonded seal. The presence of a supplied gasket or a dedicated spot for one points to BSPP. Pre-applied sealant indicates a tapered thread. These visual and tactile clues, combined with profile shape and sealing surfaces, offer a high degree of confidence in initial thread assessment before using measuring tools.

For NPT (National Pipe Taper) threads:

1. Determine fitting gender: Identify if the fitting is male (threads on the outside) or female (threads on the inside).
2. Identify thread type: Distinguish between tapered (NPT) and straight (NPS) threads. Tapered threads narrow outwards, while straight threads maintain a consistent diameter.
3. Measure thread diameter: Use a caliper, measuring tape, or ruler. For male threads, measure the outer diameter (OD). For female threads, measure the inner diameter (ID). This measurement helps determine the thread dimension.
4. Match to a thread chart: After measuring, compare the obtained diameter to a thread chart to determine the nominal size. Thread dimensions are not based on standard units of measurement. They relate to the pipe's ID.
5. Consider sealing mechanisms: Straight fittings require an O-ring, gasket, or washer for sealing. Tapered fittings should be sealed with Teflon tape or pipe dope. Improperly matched threads will not seal effectively, leading to leaks.

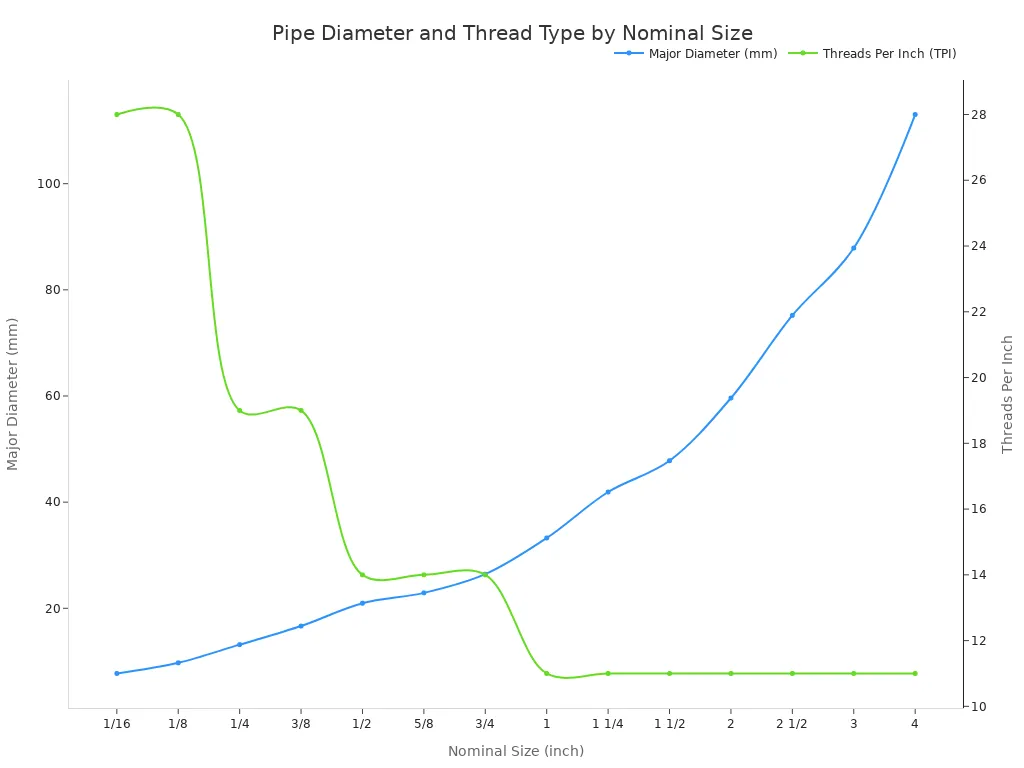

Here is a reference chart for British Standard Pipe threads:

Nominal Size (inch)	Major Diameter (mm)	Major Diameter (inch)	Threads Per Inch (TPI)	Taper Angle
1/16	7.723	0.304	28	1° 47′
1/8	9.728	0.383	28	1° 47′
1/4	13.157	0.518	19	1° 47′
3/8	16.662	0.656	19	1° 47′
1/2	20.955	0.825	14	1° 47′
5/8	22.911	0.902	14	1° 47′
3/4	26.441	1.041	14	1° 47′
1	33.249	1.309	11	1° 47′
1 1/4	41.910	1.650	11	1° 47′
1 1/2	47.803	1.882	11	1° 47′
2	59.614	2.347	11	1° 47′
2 1/2	75.184	2.960	11	1° 47′
3	87.884	3.460	11	1° 47′
4	113.030	4.450	11	1° 47′

Note: The taper angle of 1° 47′ (1.7833 degrees) is characteristic of all BSPT threads and corresponds to the 1 in 16 taper ratio.

When installing, avoid cross-threading. If a fitting feels like it is going in incorrectly, it is likely cross-threading. Prefer Teflon tape over pipe dope for simpler installation. This also avoids mess or sealant flowing into appliances. Ensure the ends of fittings are clean before use. This prevents debris from getting caught in the threads. Do not overtighten. Overtightening, especially with plastic fittings, can cause cracking or splitting.

Select Material Based on Operating Conditions

The operating conditions of a water system significantly influence the choice of connector material. Different environments and fluid characteristics demand specific material properties for optimal performance and longevity.

For high-temperature applications, thermoplastic materials like PBT (Polybutylene Terephthalate) offer excellent heat resistance and dimensional stability. PPS (Polyphenylene Sulfide) is known for its high-temperature performance and chemical resistance. PEI (Polyetherimide) provides high strength, stiffness, and heat resistance. Conversely, low-temperature conditions require elastomers such as Silicone, which maintains flexibility and sealing properties in extreme cold. EPDM (Ethylene Propylene Diene Monomer) also offers good low-temperature flexibility and weather resistance.

When dealing with chemical exposure, PEEK (Polyether Ether Ketone) provides excellent resistance to a wide range of chemicals, high temperatures, and wear. PVDF (Polyvinylidene Fluoride) exhibits high chemical resistance, UV resistance, and good mechanical properties. PTFE (Polytetrafluoroethylene) offers exceptional chemical inertness and high-temperature resistance.

UV exposure is a concern for outdoor connectors. PC (Polycarbonate) provides good UV resistance and impact strength. UV-stabilized grades of PA (Polyamide/Nylon) offer good weatherability and mechanical strength. EPDM (Ethylene Propylene Diene Monomer) also shows excellent resistance to weathering and UV radiation.

Connectors experiencing mechanical stress or vibration benefit from materials like PA (Polyamide/Nylon) due to its high toughness and abrasion resistance. PBT (Polybutylene Terephthalate) offers good mechanical strength and stiffness. PC (Polycarbonate) provides high impact strength and rigidity.

For applications involving oil or fuel exposure, NBR (Nitrile Butadiene Rubber) offers excellent resistance to oils, fuels, and other petroleum-based products. FKM (Fluoroelastomer/Viton) provides superior resistance to a broad range of chemicals, oils, and high temperatures.

In saltwater or corrosive environments, PEEK (Polyether Ether Ketone) offers excellent resistance to hydrolysis and corrosive conditions. PVDF (Polyvinylidene Fluoride) shows high resistance to salt spray and many corrosive chemicals. Stainless Steel (316L) is a metal option for housing or contacts, providing superior corrosion resistance in marine and harsh chemical environments.

For general outdoor use, PA (Polyamide/Nylon) offers a good balance of mechanical properties, weatherability (UV stabilized), and cost-effectiveness. PC (Polycarbonate) provides good impact resistance and UV stability. EPDM (Ethylene Propylene Diene Monomer) exhibits excellent weather and ozone resistance.

In food & beverage or medical applications, PEEK (Polyether Ether Ketone) is biocompatible, sterilizable, and chemical resistant. PP (Polypropylene) has food-grade options, good chemical resistance, and is sterilizable. Medical-grade Silicone is biocompatible, high-temperature resistant, and flexible.

Flame retardancy is crucial for safety in specific applications. V0 rated materials, such as certain PBT, PA, and PC grades, offer self-extinguishing properties. Finally, for cost-effectiveness, PVC (Polyvinyl Chloride) is economical, offers good chemical resistance, and is versatile. PP (Polypropylene) is low cost, has good chemical resistance, and is lightweight. PA (Polyamide/Nylon) provides a good balance of performance and cost for many applications.

Operating Condition	Material Type	Specific Material	Rationale/Benefit
High Temperature	Thermoplastic	PBT (Polybutylene Terephthalate)	Offers excellent heat resistance and dimensional stability.
	Thermoplastic	PPS (Polyphenylene Sulfide)	Known for high-temperature performance and chemical resistance.
	Thermoplastic	PEI (Polyetherimide)	Provides high strength, stiffness, and heat resistance.
Low Temperature	Elastomer	Silicone	Maintains flexibility and sealing properties in extreme cold.
	Elastomer	EPDM (Ethylene Propylene Diene Monomer)	Good low-temperature flexibility and weather resistance.
Chemical Exposure	Thermoplastic	PEEK (Polyether Ether Ketone)	Excellent resistance to a wide range of chemicals, high temperatures, and wear.
	Thermoplastic	PVDF (Polyvinylidene Fluoride)	High chemical resistance, UV resistance, and good mechanical properties.
	Thermoplastic	PTFE (Polytetrafluoroethylene)	Exceptional chemical inertness and high-temperature resistance.
UV Exposure	Thermoplastic	PC (Polycarbonate)	Good UV resistance and impact strength.
	Thermoplastic	PA (Polyamide/Nylon)	UV stabilized grades offer good weatherability and mechanical strength.
	Elastomer	EPDM (Ethylene Propylene Diene Monomer)	Excellent resistance to weathering and UV radiation.
Mechanical Stress/Vibration	Thermoplastic	PA (Polyamide/Nylon)	High toughness and abrasion resistance.
	Thermoplastic	PBT (Polybutylene Terephthalate)	Good mechanical strength and stiffness.
	Thermoplastic	PC (Polycarbonate)	High impact strength and rigidity.
Oil/Fuel Exposure	Elastomer	NBR (Nitrile Butadiene Rubber)	Excellent resistance to oils, fuels, and other petroleum-based products.
	Elastomer	FKM (Fluoroelastomer/Viton)	Superior resistance to a broad range of chemicals, oils, and high temperatures.
Saltwater/Corrosion	Thermoplastic	PEEK (Polyether Ether Ketone)	Excellent resistance to hydrolysis and corrosive environments.
	Thermoplastic	PVDF (Polyvinylidene Fluoride)	High resistance to salt spray and many corrosive chemicals.
	Metal (for housing/contacts)	Stainless Steel (316L)	Superior corrosion resistance in marine and harsh chemical environments.
General Outdoor Use	Thermoplastic	PA (Polyamide/Nylon)	Good balance of mechanical properties, weatherability (UV stabilized), and cost-effectiveness.
	Thermoplastic	PC (Polycarbonate)	Good impact resistance and UV stability.
	Elastomer	EPDM (Ethylene Propylene Diene Monomer)	Excellent weather and ozone resistance.
Food & Beverage/Medical	Thermoplastic	PEEK (Polyether Ether Ketone)	Biocompatible, sterilizable, and chemical resistant.
	Thermoplastic	PP (Polypropylene)	Food-grade options, good chemical resistance, and sterilizable.
	Elastomer	Silicone (Medical Grade)	Biocompatible, high-temperature resistance, and flexible.
Flame Retardancy	Thermoplastic	V0 rated materials (e.g., certain PBT, PA, PC grades)	Self-extinguishing properties, crucial for safety in specific applications.
Cost-Effectiveness	Thermoplastic	PVC (Polyvinyl Chloride)	Economical, good chemical resistance, and versatile.
	Thermoplastic	PP (Polypropylene)	Low cost, good chemical resistance, and lightweight.
	Thermoplastic	PA (Polyamide/Nylon)	Good balance of performance and cost for many applications.

Choose Connector Type for Specific Application Needs

The specific application dictates the most suitable connector type. Each connector design offers unique advantages for different scenarios. For example, threaded connectors provide secure and robust connections. Installers often use them in permanent plumbing installations where a strong, leak-proof seal is paramount. They are ideal for connecting rigid pipes in residential or industrial settings.

Push-to-connect fittings offer unparalleled ease of installation. They are perfect for quick repairs or situations requiring frequent assembly and disassembly. Homeowners and DIY enthusiasts often prefer these fittings due to their tool-free nature. They work well in accessible areas where speed is a priority.

Compression fittings create tight seals without the need for soldering or extensive tools. They are versatile and suitable for various pipe materials. Plumbers often choose them for situations where heat is undesirable or impractical. They also allow for future adjustments or disconnections.

For flexible hoses, barbed fittings are the go-to choice. Their design ensures a strong grip on the inside of the hose. Gardeners commonly use them for irrigation systems and general outdoor watering. They provide a reliable connection for flexible tubing.

Quick-connect couplings prioritize convenience. They allow users to rapidly attach and detach hoses or tools. These are invaluable for tasks requiring frequent changes, such as switching between different watering accessories or pneumatic tools. They save significant time and effort.

Finally, specialty connectors address unique plumbing challenges. These include specific adapters for different pipe types or configurations. They provide tailored solutions for complex systems or unusual installation requirements. Selecting the right connector type ensures optimal performance and efficiency for the intended use.

Verify Pressure and Temperature Ratings for Safety

Verifying pressure and temperature ratings is a critical step for safety. Every water outlet connector has specific limits for both pressure and temperature. Exceeding these limits can lead to severe consequences. For instance, elevated temperatures significantly reduce a fitting's pressure-holding capacity. This means a fitting's pressure rating is only guaranteed at a given temperature. Unlike pressure ratings, a safety factor is not built into the temperature rating for plastic piping. If operating conditions exceed the material's rated temperature, alternative materials should be considered.

Ignoring these ratings can result in catastrophic failure. This poses risks of severe injury or even death. In environments with gas lines, exceeding pressure limits can lead to explosive situations. For steam lines, violent explosions of scalding vapor are a real danger. Such failures can also cause significant damage to surrounding equipment. Always ensure the chosen connector's ratings meet or exceed the system's maximum operating pressure and temperature. This proactive approach prevents accidents and ensures long-term system integrity.

Consider Future Maintenance and Accessibility

Future maintenance and accessibility are important considerations when selecting water outlet connectors. Choosing connectors that allow for easy access and repair can save significant time and effort later. Some connector types are inherently easier to work with than others.

For example, push-to-connect fittings and quick-connect couplings offer excellent accessibility. Users can easily disconnect and reconnect them without special tools. This simplifies routine maintenance, such as cleaning or replacing components. They are ideal for areas where frequent access is necessary.

Conversely, soldered connections are permanent. They require specialized tools and skills for repair or replacement. While highly durable, they can make future modifications more challenging. Installers should consider these types for areas where long-term, undisturbed connections are paramount.

When planning a system, consider the physical space around the connection points. Ensure enough room exists to manipulate tools or hands for installation, inspection, and repair. Placing connectors in easily accessible locations minimizes disruption during maintenance. This also reduces the likelihood of damage during service. Prioritizing accessibility during the selection process contributes to a more manageable and sustainable water system.

Specialized Water Outlet Connectors for Watering Systems

Understanding Watering Connectors and Their Uses

Watering systems rely on specialized connectors for efficient water distribution. These connectors ensure secure and leak-free connections between various components. Understanding their types and uses helps optimize any irrigation setup.

1. Insert or Barbed Fittings: These are common and easy to find. They can be difficult to install and remove, often requiring clamps. They are typically not reused.
2. Compression Fittings: These usually do not require clamps. They fit on the outside of the supply line, which helps maintain flow and PSI. However, they are very difficult to remove and reuse.
3. Threaded Fittings: These feature male or female threads. They connect to other components like faucets, filters, or pressure regulators within an irrigation system.
4. Quick Connect Fittings: These offer a convenient way to connect and disconnect tubing or drip lines. They use a push-and-lock mechanism, often without tools. Some models also automatically shut off water upon disconnection.
5. Lateral Line Fittings: These link the main water supply to drip lines or tubing. They ensure a secure and leak-free connection for water distribution to plants.
6. PVC Fittings: These provide strong, durable, and leak-free connections. They require glue for installation, making them non-reusable. The gluing process also poses safety concerns.
7. Perma-Loc Fittings: These fittings address many issues of other types. They are easy to install without clamps and are reusable. They do not require tools or Teflon tape like threaded fittings. They save labor, reduce leak potential, and simplify repairs and system modifications.

Double Male Connector and 3-Way Tap Connector Applications

Double male connectors and 3-way tap connectors offer specific solutions for watering systems. Male couplings on garden hoses feature external threading. This screws into female couplings found on watering accessories like nozzles, sprinklers, or other hoses. This design allows for the connection of various watering components. A 3-way tap connector converts a single spigot into two high-flow water sources. This is suitable for garden irrigation, agriculture watering, and car washing.

• Each branch has an individual on/off valve. This allows both connectors to work simultaneously for improved efficiency.
• They are easy to operate without effort.
• Manufacturers often make them from durable zinc alloy with a comfortable rubberized grip. This prevents breakage and leaks.

The Functionality of a Water Stop Connector

The water stop connector provides crucial functionality in watering systems. It automatically halts water flow when a hose or tool is disconnected. An internal valve closes upon detachment. This prevents leaks and spills. This technology ensures a clean and hassle-free experience. It keeps hands and surroundings dry. This is particularly useful for frequent hose changes. It maintains a tidy workspace. A reliable water stop connector Simple Single Outlet connector Single is essential for preventing water waste. Users appreciate the convenience of a water stop connector Simple Single Outlet connector Single. It simplifies the process of swapping out watering tools. Choosing a quality water stop connector Simple Single Outlet connector Single ensures system integrity. This type of water stop connector Simple Single Outlet connector Single offers dependable performance. It is a key component for efficient watering.

Connecting Multiple Watering Systems with 4-Way Connectors

A 4-way connector significantly enhances watering system capabilities. This specialized device splits a single water tap into four independent outlets. Gardeners often use these connectors for managing complex irrigation setups. They allow simultaneous operation of multiple hoses, sprinklers, or drip lines. For instance, one can water different garden zones at the same time. This saves considerable time and effort.

Many 4-way connectors feature individual shut-off valves for each outlet. This design provides precise control over water flow to specific areas. Users can easily turn off one line while others remain active. This flexibility is crucial for efficient water management. Manufacturers construct these connectors from durable materials like brass or heavy-duty plastic. This ensures longevity and resistance to outdoor elements. A 4 Way Water Manifold exemplifies this functionality, offering robust performance for demanding applications. This type of connector is indispensable for large properties or commercial landscaping projects. It streamlines watering tasks and optimizes water distribution across various zones. Consider these benefits:

• Simultaneous Operation: Run multiple watering tools from one tap.
• Independent Control: Manage water flow to each outlet individually.
• Enhanced Efficiency: Save time by watering different areas concurrently.
• Durable Construction: Withstand outdoor conditions for long-term use.

Universal Hose Connector Options for Versatility

Universal hose connectors offer exceptional versatility for various watering needs. These connectors provide compatibility across different hose sizes and brands. They eliminate the need for multiple specialized fittings. A Universal Hose Connector typically features a design that adapts to common hose diameters, such as 1/2 inch or 5/8 inch. This ensures a snug and leak-free fit for most standard garden hoses.

One popular option is the Universal Hose Connector Plus with Aqua Stop. This advanced connector includes an integrated water stop mechanism. It automatically halts water flow when users disconnect an accessory. This prevents unnecessary water waste and keeps hands dry during tool changes. Both plastic and part-metal versions of universal connectors are available. Plastic options offer lightweight and corrosion-resistant properties, ideal for general use. Part-metal connectors provide enhanced durability and resilience for more rigorous or frequent use. These versatile connectors simplify hose management and improve overall watering efficiency. They are a practical choice for any gardener seeking flexibility and convenience in their watering routine. They ensure a seamless connection experience.

Installation Best Practices for Water Outlet Connectors

Preparing Connection Surfaces for Optimal Sealing

Proper surface preparation is essential for creating a leak-free water outlet connection. Installers must ensure all surfaces are clean and ready for sealing. First, they clean the threads. They utilize a wire brush or a suitable cleaning tool to eliminate any dirt, debris, or old sealing material from the threads of the water pipe. This ensures optimal contact and effective sealing. Next, they apply thread sealant tape. They wrap the threads of the water pipe with thread sealant tape in a clockwise direction. They ensure the tape covers the entire threaded area, with slight overlaps between each wrap. This creates a watertight seal and helps prevent leaks. Finally, they verify thread compatibility. They confirm the chosen PVC pipe fittings have threads compatible with the water pipe in terms of size, pitch, and type (e.g., tapered or straight). These steps prevent future leaks and ensure the connector performs reliably.

Using Sealants and Tapes Correctly for Leak Prevention

Correct application of sealants and tapes is crucial for preventing leaks in water outlet connectors. Thread sealant tape, often called PTFE tape or Teflon tape, provides a barrier against water seepage. Users wrap the tape clockwise around male threads, typically three to five times, ensuring it sits snugly in the thread grooves. This direction prevents the tape from unwrapping during tightening. Pipe dope, a liquid or paste sealant, offers another effective option. Installers apply a thin, even layer of pipe dope to the male threads. Both methods fill microscopic gaps between threads, creating a watertight seal. They avoid excessive application, which can foul the system or prevent proper tightening.

Proper Tightening Techniques for Secure Connections

Applying the correct tightening technique ensures a secure and durable connection. Overtightening can strip threads, crack fittings, or deform components, especially with plastic connectors. Undertightening, conversely, leads to leaks. For most threaded connections, users hand-tighten the fitting until snug. Then, they use a wrench for an additional one to two turns. This provides sufficient compression for the sealant to work effectively. Compression fittings require careful tightening to compress the ferrule without deforming the pipe. Users tighten the nut until they feel resistance, then add a quarter to half turn with a wrench. They always follow manufacturer guidelines for specific torque recommendations. This prevents damage and ensures a reliable, leak-free seal.

Leak Testing Procedures After Installation

After installing any water outlet connector, thorough leak testing is essential. This crucial step confirms the integrity of all connections. It prevents potential water damage and ensures system reliability. Skipping this procedure can lead to costly repairs later.

First, users conduct a visual inspection. They carefully examine all newly installed connectors and surrounding pipe sections. They look for any visible gaps, cracks, or misalignments. A proper installation appears neat and secure.

Next, users slowly introduce water into the system. They gradually open the main water supply valve. This allows water pressure to build up slowly. A sudden rush of water can stress new connections. They listen for any unusual sounds, such as hissing or dripping. These noises often indicate a leak.

Then, users check for leaks using a simple method. They apply a soapy water solution to each connection point. They can use a spray bottle or a brush for this task. Bubbles forming at a connection indicate a leak. Alternatively, users can wrap a dry paper towel around each joint. A wet spot on the paper towel reveals a leak. They allow the system to remain under pressure for several minutes. This provides enough time for small leaks to become apparent.

If users discover any leaks, they immediately shut off the water supply. They then tighten the problematic connection slightly. They reapply sealant tape or pipe dope if necessary. They repeat the leak testing procedure until all connections are completely dry. This meticulous approach guarantees a secure and leak-free water system.

Troubleshooting Common Water Outlet Connector Issues

Addressing Leaks After Installation Effectively

Leaks after installation often frustrate users. They typically stem from improper sealing or damaged components. First, identify the exact source of the leak. Look for drips or water accumulation around the connector. If the leak originates from a threaded connection, tighten the fitting slightly. Avoid overtightening, which can cause further damage. If tightening does not resolve the issue, disassemble the connection. Reapply thread sealant tape or pipe dope correctly. Ensure the tape wraps clockwise and covers all threads. For compression fittings, check the ferrule and nut. Ensure they sit properly and tighten the nut carefully. Replace any damaged O-rings or gaskets immediately.

Dealing with Stripped Threads and Damaged Connections

Stripped threads and damaged connections render a connector useless. Overtightening often causes stripped threads, especially with plastic connectors. If a male thread strips, replace the entire component. For a female thread, a thread repair kit might offer a temporary solution. However, replacing the damaged fitting provides a more reliable fix. Damaged connections, such as cracked plastic or bent metal, also require replacement. Attempting to repair severely damaged parts often leads to recurring leaks. Always use appropriate tools and avoid excessive force during installation to prevent these issues.

Preventing Corrosion and Material Degradation

Corrosion and material degradation shorten a connector's lifespan. Selecting the correct material for the environment prevents these problems. Stainless steel connectors resist rust and corrosion in harsh outdoor or chemical environments. Brass connectors offer good durability for general plumbing. Plastic and PVC connectors resist chemical degradation but can become brittle from UV exposure. Regularly inspect connectors for signs of wear, discoloration, or pitting. Replace corroded or degraded connectors proactively. This prevents sudden failures and maintains system integrity.

Resolving Flow Restrictions and Blockages

Flow restrictions and blockages significantly impair water system performance. They reduce water pressure and can damage pumps or other components. Users must effectively identify and resolve these issues.

First, identify the source of the blockage. Common culprits include sediment, mineral buildup, or foreign debris. Hoses can also kink, restricting flow. Begin by inspecting the most accessible points. Check filters, screens, and the connector itself.

Mineral deposits, such as limescale, often accumulate inside connectors and pipes. These deposits narrow the pathway for water. Regular flushing of the system helps prevent severe buildup. For existing blockages, users can employ a descaling solution. They follow the manufacturer's instructions carefully. This dissolves the mineral deposits.

Debris, like dirt, rust particles, or plant matter, can enter the system. It then lodges in narrow sections or screens. Disassemble the affected connector. Physically remove any visible debris. A small brush or a blast of compressed air can dislodge stubborn particles.

Kinks in flexible hoses are a frequent cause of reduced flow. Visually inspect the entire length of the hose. Straighten any kinks immediately. Consider replacing older, less flexible hoses. New hoses often resist kinking better.

If the blockage persists after these steps, the issue might lie deeper within the plumbing. In such cases, a professional plumber can diagnose and resolve the problem. They possess specialized tools for internal pipe inspection and cleaning. Proactive maintenance, such as installing sediment filters, significantly reduces the likelihood of future blockages. This ensures consistent water flow and extends the lifespan of the entire system.

• Tip: Regularly clean filters and screens to prevent debris accumulation.
• Caution: Always shut off the water supply before attempting to clear any blockages.

---

Confident connector selection requires understanding pipe types, materials, and application needs. This informed approach ensures leak-free, durable connections. Making the right choice prevents costly repairs and water waste, guaranteeing long-term system reliability. Future innovations in 2026 will likely include smart connectors with leak detection and self-sealing capabilities. Expect more sustainable, recycled materials to shape the next generation of water outlet solutions.

FAQ

What causes leaks in water outlet connectors?

Improper installation often causes leaks. Incorrect thread type or size also leads to leaks. Damaged seals or overtightening can compromise the connection. Always ensure compatibility and proper sealing techniques.

How do metal and plastic hose connectors differ?

Metal connectors offer superior durability and withstand higher pressures. Plastic connectors are lightweight and more cost-effective. They resist corrosion but may degrade from UV exposure. Choose based on your specific needs and environment.

Are push-to-connect fittings suitable for high-pressure systems?

Push-to-connect fittings are generally suitable for moderate pressure applications. Manufacturers specify maximum pressure ratings for each fitting. Always verify these ratings against your system's requirements. Avoid using them in extremely high-pressure environments.

What is a water stop connector?

A water stop connector automatically halts water flow when users disconnect a hose or accessory. This prevents spills and conserves water. It provides convenience for frequent tool changes. This feature keeps the area dry during use.
